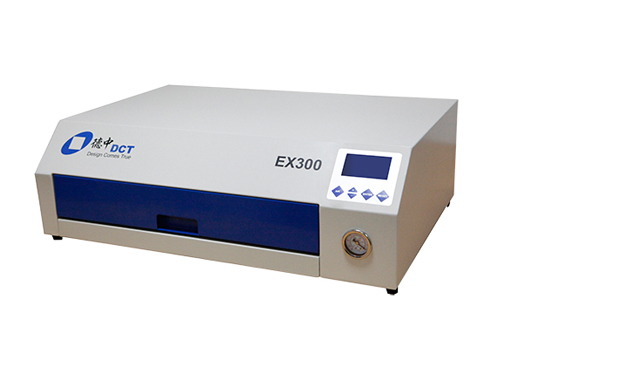

EX Series Exposure Units
DCT UV exposure units integrated advanced linear scan technology and high quality light source, can be used for single and double PCB board exposure which has been covered with photosensitive film, and is also suitable for image transfer process of solder ink nameplate, hollow parts and other products.
Features
Linear light source scanning
Linear light scanning structure ensure high parallel light
High quality LED UV light source
Narrow spectrum, less clutter, small thermal effect
High light transmittance
High light transmittance and high uniformity
Have multiple optional modules
Three optional modules to meet different application requirements
Product parameters
Technical data | EL400 | EX300 |
Capacity | 30PNL/h | 120PNL/h |
Vacuum | ≤0.6MPA | ≤0.6MPA |
Light source | UV LED | UV-A actinic fluorescent tube |
Transparent material | PMMA | Mylar |
Light wavelength | 395nm | 365nm |
Power supply | 220VAC/50Hz | 220VAC/50Hz |
Power consumption | 0.3kW | 0.25kW |
Weight | 25kg | 20.5kg |
